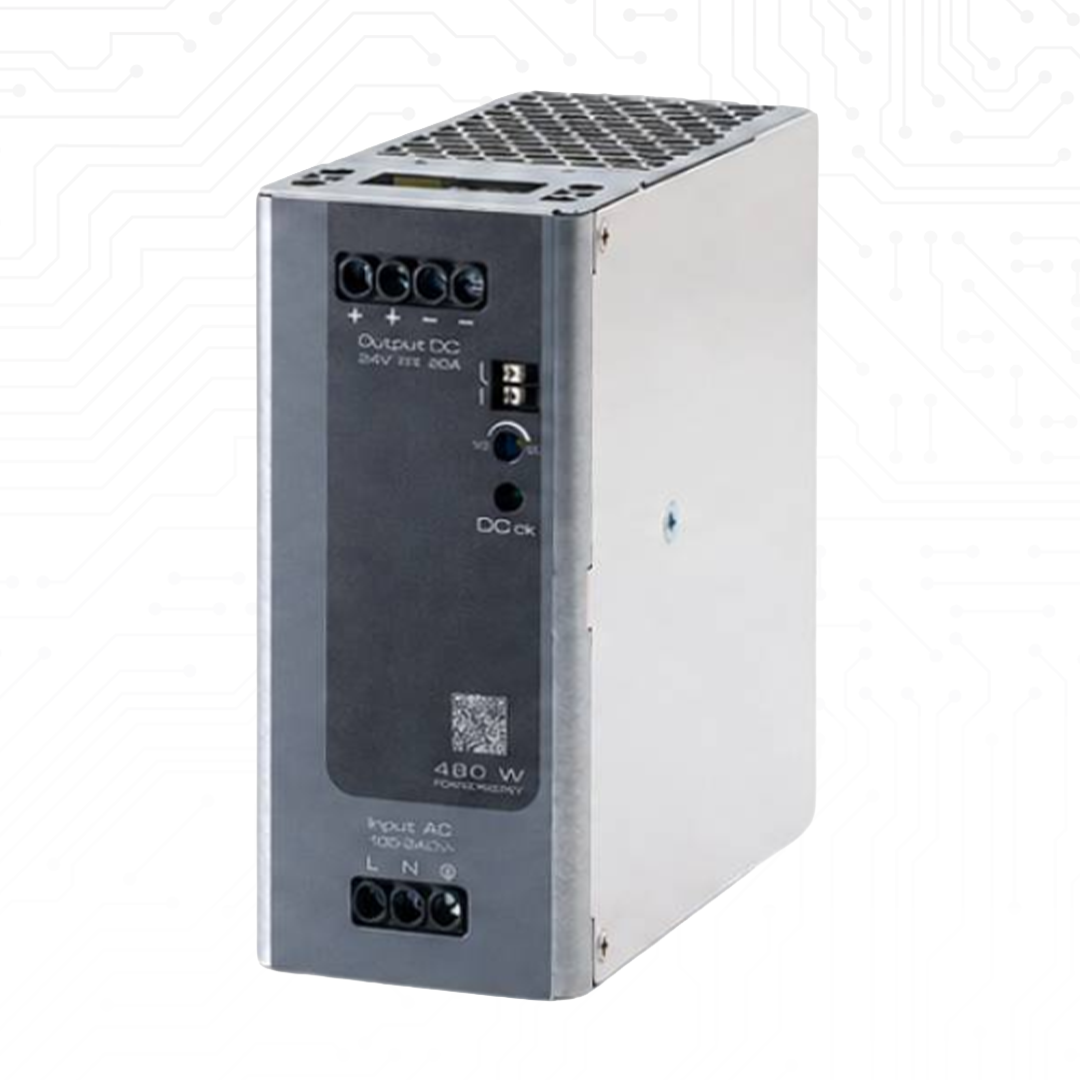

CoselSync CXLDA480F-24-T | 24V 480W Power Supply
£79.74
AC-DC PSU. Power: 480W Input: 90-264 Vac Output: 24 Vdc
The CXLDA480F-24-T from CoselSync, 24V 480 W ac-dc DIN-rail for industrial control applications.
Featuring universal input, protected outputs and a wider 480 W performance range.
Available on back-order
Description
The CoselSync CXLDA480F-24-T is a compact and reliable 24V 480W DIN rail power supply designed for demanding industrial applications, including automation systems, control panels, machine building and process control equipment.
Combining high efficiency, a slim 56mm housing and proven COSEL reliability, this industrial power supply provides a dependable solution where panel space and long-term performance are critical.
Designed in Japan and manufactured in Vietnam, the CoselSync CXLDA480F-24-T delivers the quality and engineering expertise expected from COSEL, while offering excellent value for OEMs, system integrators and industrial equipment manufacturers.
Compact 24V 480W DIN Rail Power Supply
A high-efficiency industrial power supply combining a regulated 24V output with a slim, space-saving DIN rail enclosure.
The CXLDA480F-24-T provides a regulated 24V DC output with 480W of power, making it suitable for a wide range of industrial systems requiring stable and efficient DC power. Its compact DIN rail design allows it to be installed easily within control cabinets, helping maximise available enclosure space without
compromising output performance.
Ideal for Automation and Control Systems
This 24V DIN rail power supply is designed for applications including:
- PLC and industrial automation systems
- Machine control equipment
- Human-machine interfaces
- Sensors and industrial communication equipment
- Process control systems
- Factory automation applications
The robust design supports dependable operation in demanding industrial environments where consistent power delivery is essential.
High-Efficiency, Space-Saving Design
A key advantage of the CoselSync CXLDA480F-24-T is its slim 56mm DIN rail width, allowing system designers to reduce panel size and optimise cabinet layouts. Its high-efficiency design minimises power losses and reduces heat generation, helping improve overall system reliability. The compact form factor makes this 480W DIN rail power supply particularly suitable where installation space is limited but a higher power output is required.
Reliable COSEL Engineering
COSEL has a long-standing reputation for developing high-quality industrial power solutions, combining advanced engineering with dependable performance.
Whether used in new equipment designs or existing system upgrades, the CXLDA480F-24-T provides a reliable power solution for OEMs, panel builders and automation specialists requiring DIN rail mounted power.
Key Features
The principal electrical, mechanical and compliance characteristics of the CoselSync CXLDA480F-24-T.
- Input voltage: 90–264 Vac / 127–340 Vdc
- Output voltage: 24 Vdc
- Power rating: 480 W
- Output current: 20 A
- Efficiency: Up to 94%
- Dimensions: 124 × 56 × 117 mm
- Connections: Screw terminals
- Cooling: Free-air convection
- Certifications: UL and CE
- Ingress protection: IP20
- Warranty: Five years
- Country of origin: Vietnam
Technical Specification
Electrical, environmental and mechanical information for product
selection and system design.
| Specification | Details |
|---|---|
| Power Rating | 480 W |
| Input Voltage | 90–264 Vac / 127–340 Vdc |
| Output Voltage | 24 Vdc |
| Output Current | 20 A |
| Efficiency | Up to 94% |
| Operating Temperature | −40°C to +70°C |
| Dimensions | 124 × 56 × 117 mm |
| Compliance Standards | UL/EN 62368-1 |
| Country of Origin | Vietnam |
| Cooling Method | Free-air convection |
| Warranty | Five years |
| Ingress Protection | IP20 |
| Weight | 1,000g |
| MTBF | 200,000 hours, model dependent |
| Special Features | DC ON/Low indicators, output-voltage adjustment, slim housing and 150% peak-power capability |
Available Models
Confirm the model number, input range, output voltage and power rating
before ordering.
| Model Number | Input Range | Output Voltage | Power Rating |
|---|---|---|---|
| CXLDA480F-24-T | 90–264 Vac | 24 Vdc | 480 W |
Technical Support from Relec Electronics
As part of the Relec Electronics group, Dinrail Power benefits from over 45 years of experience supplying industrial electronic components and power solutions. Our engineering team can provide technical guidance, product selection support and assistance with complex power supply requirements. For alternative solutions, customised options or specialist technical advice, visit the Relec Electronics website
Additional information
| Output Voltage | 24 Vdc, 48 Vdc |
|---|---|
| Model | CXLDA480F-24-T, CXLDA480F-48-T |
| Filter by Power Rating | 480 W |
