Chinfa AMR5-24 | 24V 100W Power Supply
£35.83
AC-DC PSU. Power: 100W Input: 90-264 Vac Output: 24 Vdc
AMR5-24 from Chinfa, 100 W ac-dc DIN-rail for industrial control applications.
Featuring universal input, protected outputs and a wider 100 W performance range.
Available on back-order
Description
The Chinfa AMR5-24 is a low-profile DIN rail power supply designed for building automation, industrial control and compact electrical-panel applications. This 24V model provides a regulated 24VDC output at up to 4.2A, delivering 100.8W of continuous output power.
A universal 90 to 264VAC input range, internal input filtering and efficiency of up to 89% support reliable operation from common mains supplies worldwide.
The compact plastic enclosure mounts vertically onto a standard 35mm DIN rail and includes integrated short-circuit protection.

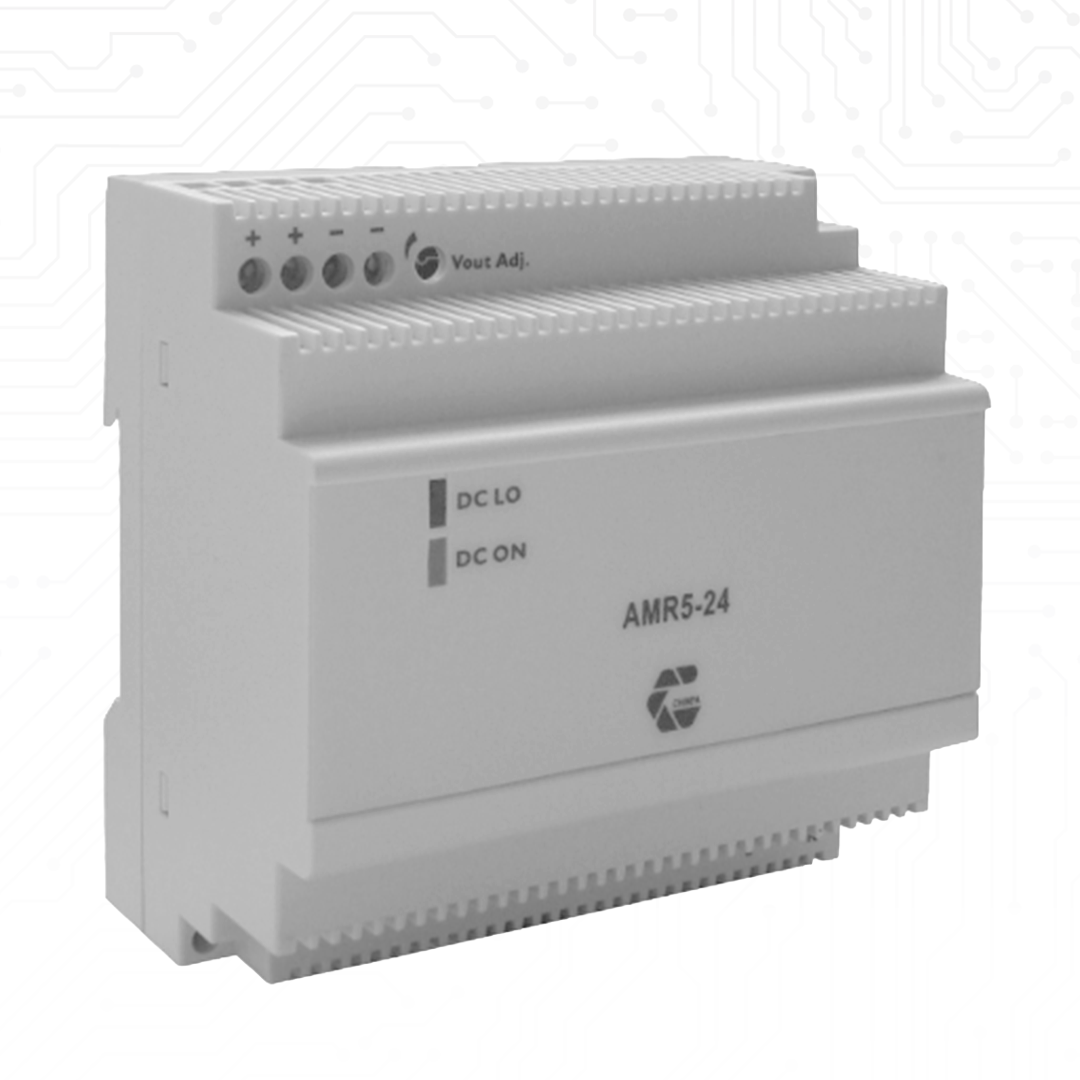

Chinfa AMR5-24 24V 4.2A DIN Rail Power Supply
A low-profile 100.8W industrial AC-DC power supply with universal input and a regulated 24VDC output.
The AMR5-24 converts a single-phase AC or compatible high-voltage DC input into a stable 24VDC supply for building automation and industrial control equipment. Its 4.2A output capacity makes it suitable for controllers, sensors, relays, actuators, communications equipment and other regulated 24VDC loads.
Typical Applications
- Building automation systems
- Industrial automation and machinery
- PLC and remote I/O systems
- HVAC controls and monitoring equipment
- Sensors, relays and actuators
- Security and access-control systems
- 24VDC control panels and instrumentation
Universal AC and DC Input
The AMR5-24 accepts a wide 90 to 264VAC input and can also operate from a 120 to 375VDC source, allowing use across common industrial and commercial power systems.
100.8W Regulated Output
The power supply delivers a nominal 24VDC output at up to 4.2A, providing 100.8W of continuous power.
Low-Profile Design
The 57mm-deep enclosure is designed for installations where panel depth is limited, making the AMR5-24 particularly suitable for building-automation cabinets and compact control enclosures.
High-Efficiency Operation
Typical efficiency of 89% helps reduce internal power losses and heat generation, supporting dependable natural-convection cooling.
Internal Input Filter
An integrated input filter helps reduce conducted electrical noise and supports reliable operation in control-system environments.
Integrated Protection
Built-in short-circuit protection helps safeguard the power supply and connected equipment during abnormal operating conditions.
Key Features
The principal electrical, protection and installation characteristics of the Chinfa AMR5-24.
- Model: AMR5-24
- AC input voltage: 90 to 264VAC
- DC input voltage: 120 to 375VDC
- Nominal output voltage: 24VDC
- Maximum output current: 4.2A
- Rated output power: 100W
- Typical efficiency: 89%
- Protection: Short circuit
- Cooling: Natural convection
- Operating temperature: -40 to +71°C
- Maximum operating altitude: 4,850m
- Enclosure: Plastic
- Mounting: 35mm DIN rail
- Dimensions: 91 x 90 x 57mm
- Weight: Approximately 380g
- Warranty: 3 years
Technical Specification
Electrical, environmental and mechanical information for product selection and system design.
| Specification | Details |
|---|---|
| Manufacturer | Chinfa Electronics |
| Model Number | AMR5-24 |
| Series | AMR5 |
| Product Type | Industrial DIN rail AC-DC power supply |
| Number of Outputs | 1 |
| Input Phase | Single phase |
| Rated AC Input | 100 to 240VAC |
| AC Input Range | 90 to 264VAC |
| DC Input Range | 120 to 375VDC |
| Nominal Output Voltage | 24VDC |
| Rated Output Current | 4.2A |
| Rated Output Power | 100.8W |
| Typical Efficiency | 89% |
| Switching Frequency | Approximately 45kHz |
| Isolation Voltage | 3,000VAC / 4,242VDC input to output |
| Isolation Resistance | 100MΩ minimum at 500VDC |
| Operating Temperature | -40 to +71°C, with output derating from +61 to +71°C |
| Storage Temperature | -40 to +85°C |
| Relative Humidity | 20 to 95% RH, non-condensing |
| Temperature Coefficient | ±0.03% per °C |
| MTBF | Approximately 525,000 hours |
| Maximum Operating Altitude | 4,850m |
| Cooling Method | Natural convection |
| Recommended Installation | Vertical; alternative orientations may require derating |
| Enclosure Material | Plastic |
| Dimensions | 91 x 90 x 57mm |
| Weight | Approximately 380g |
| Mounting | 35mm DIN rail |
| Warranty | 3 years |
Available Model
This product page covers only the 24V version of the Chinfa AMR5 series.
| Model Number | Input Voltage | Output Voltage | Output Current | Power Rating |
|---|---|---|---|---|
| AMR5-24 | 90-264VAC / 120-375VDC | 24VDC | 4.2A | 100.8W |
