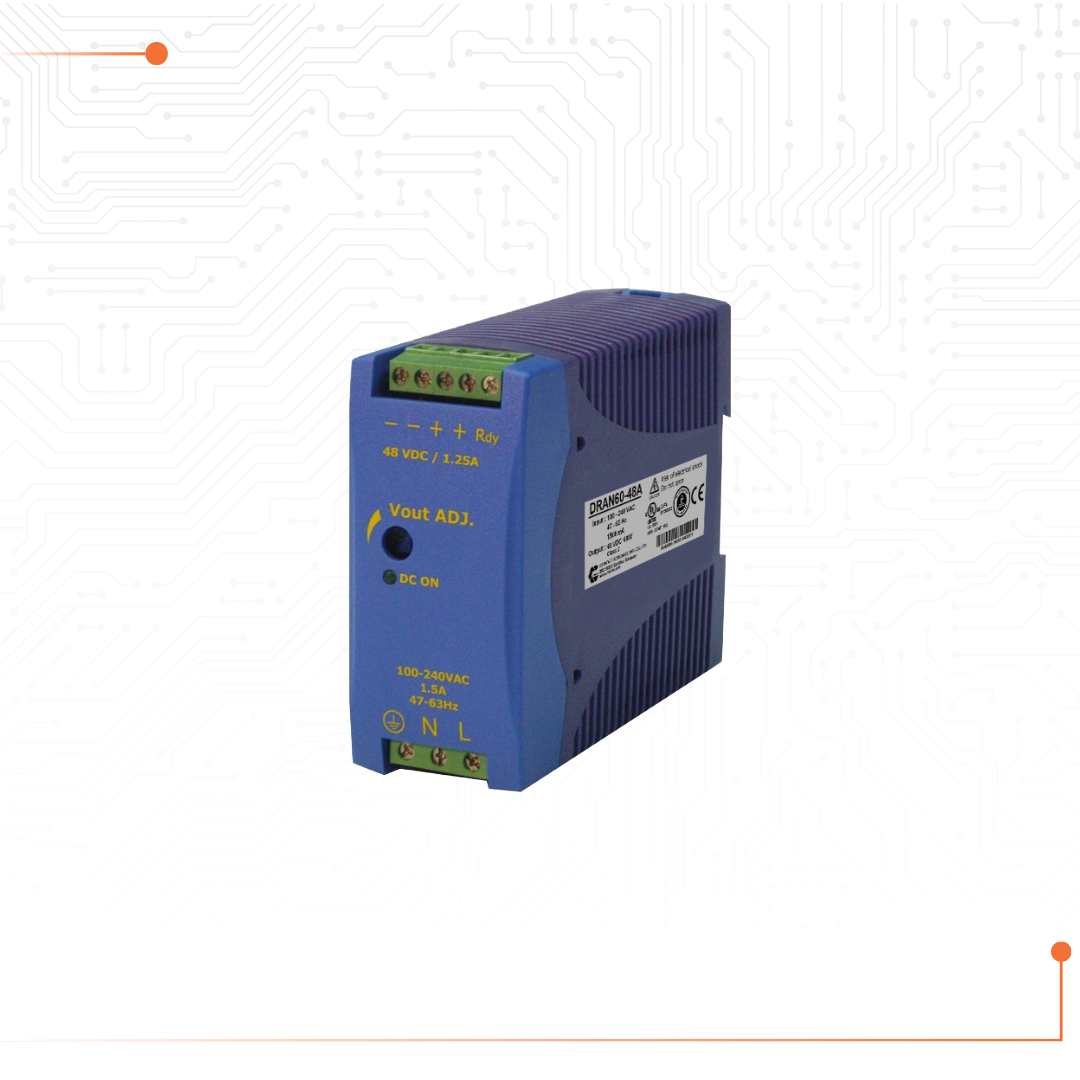

DRAN60 Series
£33.06
AC-DC PSU. Power: 60W Input: 90-264 Vac Output: 12-24 Vdc
DRAN60 Series from Chinfa, 60 W ac-dc DIN-rail for industrial control applications.
Featuring universal input, protected outputs and a wider 60 W performance range.
Description
Overview
The DRAN60 Series are compact ac-dc DIN-rail power supplies offering regulated 12 Vdc to 24 Vdc outputs at power levels of 60W. Featuring a universal 90–264 Vac input, the range includes built-in short-circuit and overload protection for reliable operation. Designed for industrial control panels, automation and instrumentation applications, the units use a snap-on 35 mm DIN-rail mounting format and convection cooling, providing a space-saving and dependable power solution for industrial systems.
Key Features
- Input Voltage: 90-264 Vac (120-375 Vdc)
- Output Range: 12-24 Vdc
- Power: 60W
- Efficiency: Up to 89%
- Dimensions (H x W x D): 90 x 40.5 x 114 mm
- Option of spring clamp or screw terminals
- Certifications: UL & CE
- Made in Taiwan
Technical Specification
| Specification | Details |
|---|---|
| Power Rating | 60 W |
| Input Voltage | 90–264 Vac (120–375 Vdc) |
| Output Voltage | 12- 24 Vdc |
| Output Current | 5 A / 2.5 A |
| Operating Temperature | -20°C to +71°C |
| Dimensions | 90 x 40.5 x 114 mm |
| Compliance Standards | UL508, UL/EN62368-1 |
| Country of Origin | Taiwan |
| Cooling Method | Free air convection |
| Warranty | 3 years |
| Ingress Protection | IP20 |
| Weight | 340g |
| MTBF | 556k–596k hours (model dependent) |
| Special Features | DC ON/Low indicators, Vout adjustment |
Available Models
| Model Number | Input Range | Output Voltage | Power Rating |
|---|---|---|---|
| DRAN60-12 | 90–264 Vac | 12 Vdc | 60 W |
| DRAN60-12A | 90–264 Vac | 12 Vdc | 60 W |
| DRAN60-24 | 90–264 Vac | 24 Vdc | 60 W |
| DRAN60-24A | 90–264 Vac | 24 Vdc | 60 W |
Additional information
| Weight | 270 g |
|---|---|
| Dimensions | 114 × 90 × 40.5 mm |
| Output Voltage | 12 Vdc, 24 Vdc |
| Power | |
| Phase | Single-Phase |
| Connector Type | Screw Terminals, Spring Terminals |
