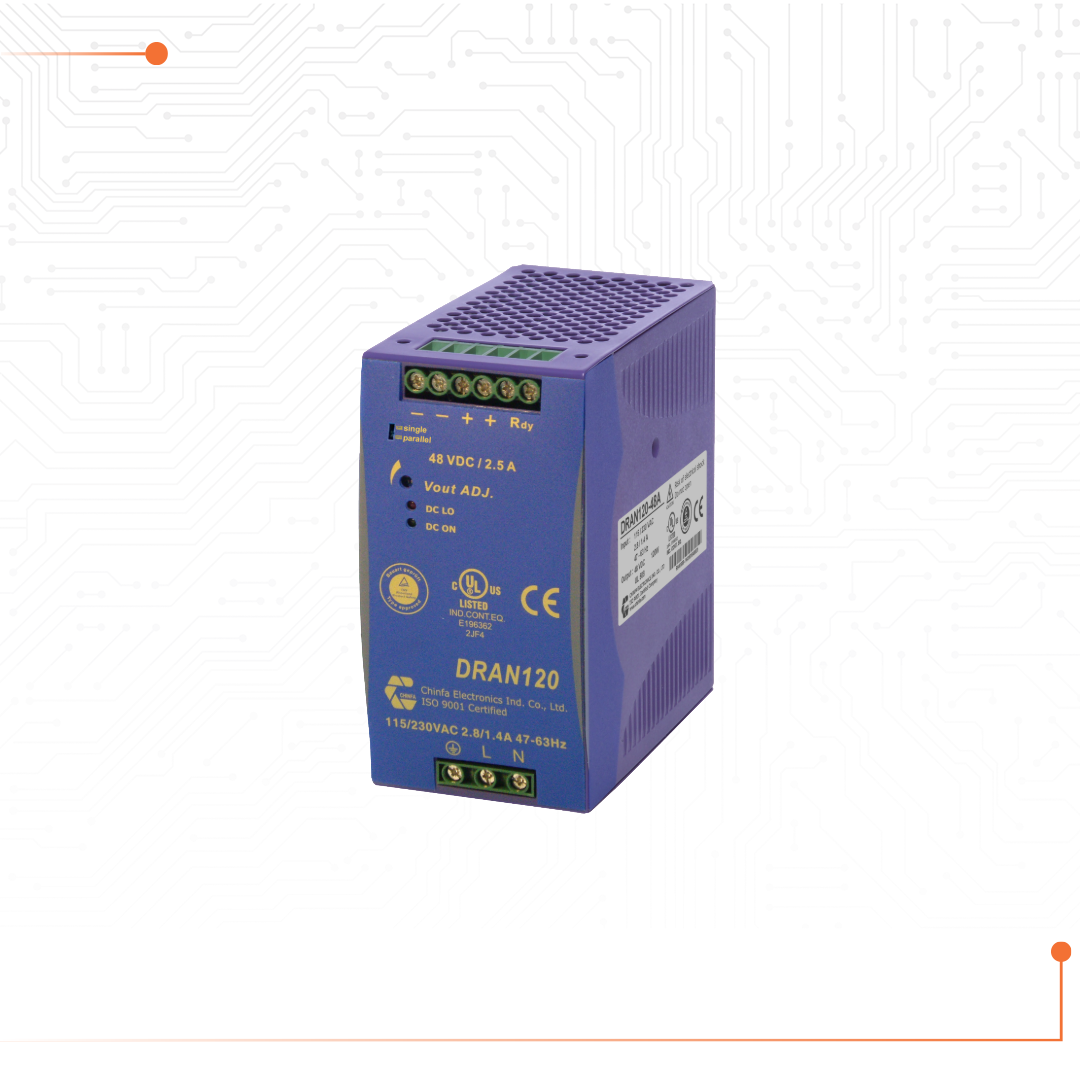

12-24V 120W Power Supply – DRAN120 Series

£55.56

AC-DC PSU. Power: 120W Input: 90-264 Vac Output: 12-24 Vdc

DRAN120 Series from Chinfa, 120 W ac-dc DIN-rail for industrial control applications.
Featuring universal input, protected outputs and a wider 120 W performance range.

SKU: N/A Category: Tag: Brand:

Description

Overview

The 12-24V 120W power supply – DRAN120 Series from Chinfa is a compact ac-dc DIN-rail power supplies offering regulated 12-24V outputs at power levels of 120W. Featuring a universal 90–264 Vac input, the range includes built-in short-circuit and overload protection for reliable operation. The 12-24V 120W DRAN120 power supply is designed for industrial control panels, automation and instrumentation applications, the units use a snap-on 35 mm DIN-rail mounting format and convection cooling, providing a space-saving and dependable power solution for industrial systems.

Key Features

  • Input Voltage: 90-264 Vac (120-375 Vdc)
  • Output Range: 12-24 Vdc
  • Power: 120 W
  • Efficiency: Up to 84%
  • Dimensions (H x W x D): 124.5 x 64 x 123.6 mm
  • Screw terminals
  • Certifications: UL & CE
  • Made in Taiwan
Download Product Datasheet
Get the full technical specifications and product details.

Download Datasheet

Technical Specification

Specification Details
Power Rating 120 W
Input Voltage 90–264 Vac (120–375 Vdc)
Output Voltage 12-24 Vdc
Output Current 10 A / 5 A
Operating Temperature -20°C to +71°C
Dimensions 124.5 x 64 x 123.6 mm
Compliance Standards UL508, UL/EN62368-1
Country of Origin Taiwan
Cooling Method Free air convection
Warranty 3 years
Ingress Protection IP20
Weight 920 g
MTBF 530 k hours (model dependent)
Special Features DC ON/Low indicators, Vout adjustment

Available Models

Model Number Input Range Output Voltage Power Rating
DRAN120-12A 90–264 Vac 12 Vdc 120 W
DRAN120-24A 90–264 Vac 24 Vdc 120 W

Download Datasheet


Additional information

Weight 270 g
Dimensions 114 × 90 × 54 mm
Output Voltage

12 Vdc, 24 Vdc
Power

120 W
Phase

Single-Phase
Model

DRAN120-12A, DRAN120-24A
