Adel System CB12245A | 12V & 24V 120W Battery Charger
£88.22
Battery Charger. Power: 120W Input: 90-305 Vac Output: 12&24 Vdc
The Adel System CB12245A is a selectable 12 V 6 A / 24 V 5 A industrial battery charger with wide 90-305 Vac input and advanced multi-stage Battery Care charging. It offers comprehensive protections, diagnostics and Modbus monitoring in a compact DIN-rail package
3 in stock (can be backordered)
Description
The ADEL System CB12245A is a compact DIN rail battery charger for 12V and 24V industrial battery systems. Manufactured in Italy, it combines switch-mode power conversion with ADEL System’s intelligent Battery Care charging and diagnostic technology.
A front-panel jumper allows the charger to be configured for either a 12V battery system at up to 6A or a 24V battery system at up to 5A. Its wide 90 to 305VAC input range supports 115V, 230V and 277V single-phase supplies.
Automatic four-stage IUoUo charging, battery-fault diagnostics and a volt-free alarm relay help maintain dependable battery performance in industrial automation, security, fire protection, telecommunications and standby-power installations.

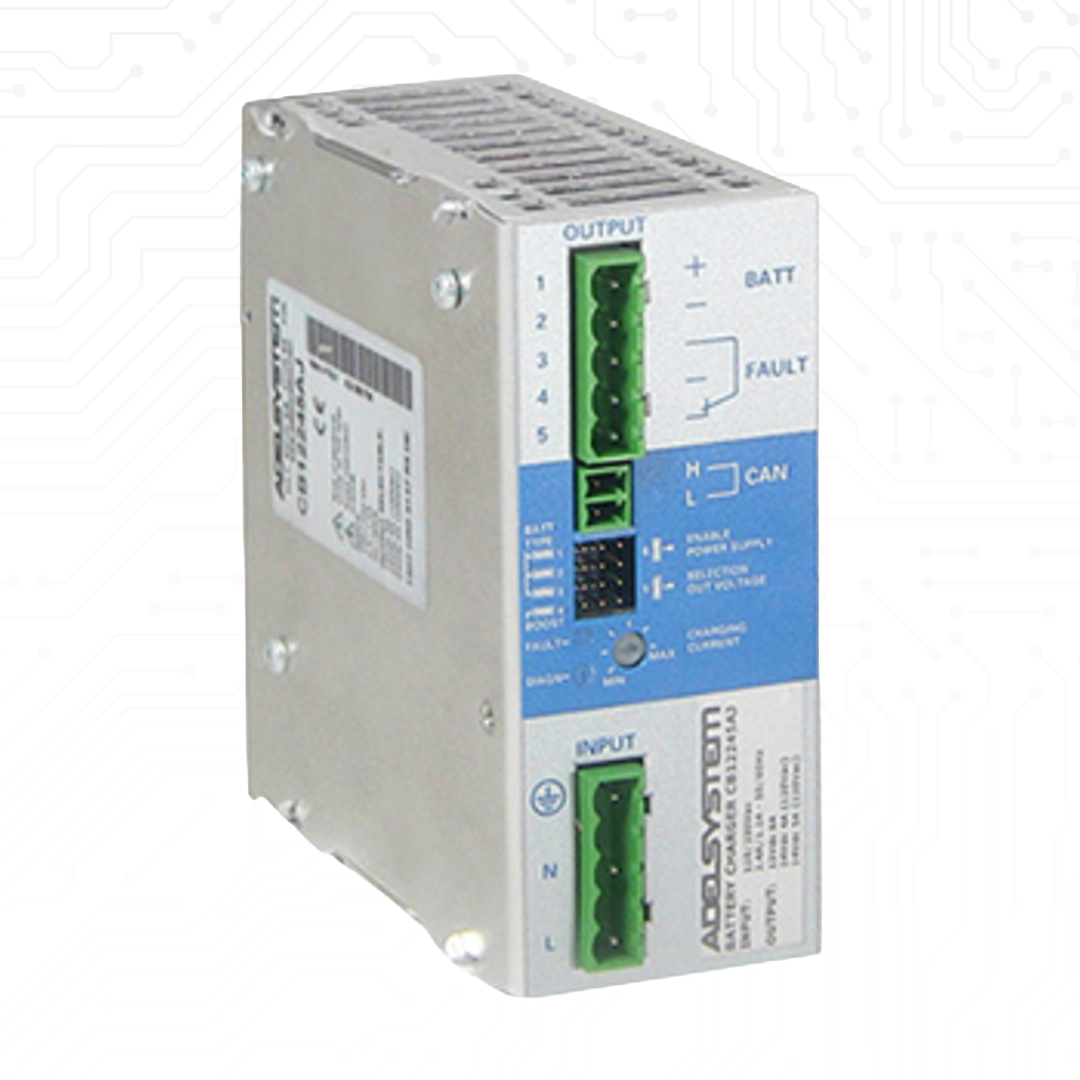

ADEL System CB12245A 12V / 24V DIN Rail Battery Charger
A compact, configurable industrial battery charger providing up to 6A at 12V or 5A at 24V.
The CB12245A is designed to charge and maintain industrial standby batteries from a single-phase AC supply. Its universal 90 to 305VAC input allows the same unit to operate from common 115V, 230V and 277V mains systems.
Typical Applications
This DIN rail battery charger is suitable for applications including:
- Industrial automation and control panels
- Fire alarm and fire-protection systems
- Security, access-control and CCTV equipment
- Telecommunications and remote monitoring
- Emergency lighting and standby-power systems
- Building-management and infrastructure equipment
Selectable 12V or 24V Operation
The output voltage is selected using a front-panel jumper. In 12V mode, the charger provides up to 6A with a 14.4V boost-charge voltage. In 24V mode, it provides up to 5A with a 28.8V boost-charge voltage.
Automatic Battery Care Charging
ADEL System’s Battery Care technology uses a four-stage IUoUo charging process with recovery, bulk, absorption and float stages. The charging current can be adjusted to suit the connected battery capacity, helping optimise charging time and long-term battery condition.
Battery Diagnostics and Alarm Output
Integrated diagnostics monitor for reversed polarity, battery disconnection, incorrect battery voltage and possible shorted cells. LED blink codes provide clear status information, while an isolated changeover relay allows battery or system faults to be reported to external monitoring equipment.
Manufactured in Italy
The CB12245A is manufactured in Italy by ADEL System for professional industrial battery-charging applications.
Key Features
The principal electrical, charging, protection and installation characteristics of the ADEL System CB12245A.
- Product type: DIN rail industrial battery charger
- Nominal input voltage: 115 / 230 / 277VAC
- Input voltage range: 90 to 305VAC
- Selectable battery voltage: 12VDC or 24VDC
- Maximum charging current: 6A at 12V or 5A at 24V
- Maximum charging power: Approximately 120W
- Efficiency: Approximately 90% at 50% load
- Charging method: Automatic four-stage IUoUo charging
- Charging stages: Recovery, bulk, absorption and float
- Battery compatibility: Open lead-acid, sealed lead-acid, gel and Ni-Cd
- Charging-current adjustment: 20% to 100% of rated current
- Diagnostics: Reverse polarity, disconnection, incorrect voltage and shorted-cell monitoring
- Status indication: LED operating and diagnostic indication
- Alarm output: Isolated changeover relay contact
- Protection: Short circuit, overload, overtemperature and reverse polarity
- Operating temperature: -25°C to +70°C with derating above +50°C
- Cooling: Natural convection
- Dimensions: Approximately 45 × 100 × 100mm
- Mounting: 35mm DIN rail mounting
- Country of manufacture: Italy
Technical Specification
Electrical, battery-management, mechanical and installation information for product selection and system design.
| Specification | Details |
|---|---|
| Manufacturer | ADEL System |
| Model Number | CB12245A |
| Product Type | DIN rail industrial battery charger |
| Nominal Input Voltage | 115 / 230 / 277VAC, single phase |
| Input Voltage Range | 90 to 305VAC |
| Input Frequency | 47 to 63Hz ±6% |
| Input Current | Approximately 2.4A at 115VAC and 1.2A at 230VAC |
| Selectable Battery Voltage | 12VDC or 24VDC, selected by jumper |
| 12V Charging Current | 6A ±5% |
| 24V Charging Current | 5A ±5% at 230VAC; 4A ±5% at 120VAC |
| Maximum Charging Power | Approximately 120W |
| Efficiency | Approximately 90% at 50% load |
| 12V Boost-Charge Voltage | 14.4VDC for lead-acid batteries; 15VDC for Ni-Cd |
| 24V Boost-Charge Voltage | 28.8VDC for lead-acid batteries; 30VDC for Ni-Cd |
| 12V Recovery-Charge Range | 3 to 8VDC |
| 24V Recovery-Charge Range | 6 to 18VDC |
| Charging-Current Adjustment | 20% to 100% of rated current |
| Charging Technology | Automatic four-stage IUoUo Battery Care charging |
| Charging Stages | Recovery, bulk, absorption and float |
| Compatible Battery Types | Open lead-acid, sealed lead-acid, gel and Ni-Cd |
| Diagnostic Functions | Reverse polarity, battery disconnection, incorrect battery voltage and shorted-cell detection |
| Status Indication | LED operating and diagnostic blink-code indication |
| Alarm Output | Isolated changeover relay, rated up to 30VDC 1A or 60VAC 1A resistive |
| Protection | Short circuit, overload, overtemperature and reverse battery polarity |
| Residual Ripple | 60mV peak-to-peak or less |
| Quiescent Current | 5mA or less |
| Operating Temperature | -25°C to +70°C, with 2.5% per °C derating above +50°C |
| Cooling Method | Natural convection |
| Ingress Protection | IP20 |
| Connections | Screw terminals |
| Dimensions | Approximately 45 × 100 × 100mm |
| Mounting | 35mm DIN rail mounting |
| Country of Manufacture | Italy |
Available Configurations
The CB12245A can be configured for either a 12V or 24V battery system using the output-voltage selection jumper.
| Model Number | Input Voltage | Output Voltage | Output Current | Power Rating |
|---|---|---|---|---|
| CB12245A | 90 to 305VAC | 12VDC | 6A | 72W |
| CB12245A | 90 to 305VAC | 24VDC | 5A | 120W |
