£25.71
AC-DC PSU. Power: 65W Input: 90-305 Vac Output: 48 Vdc

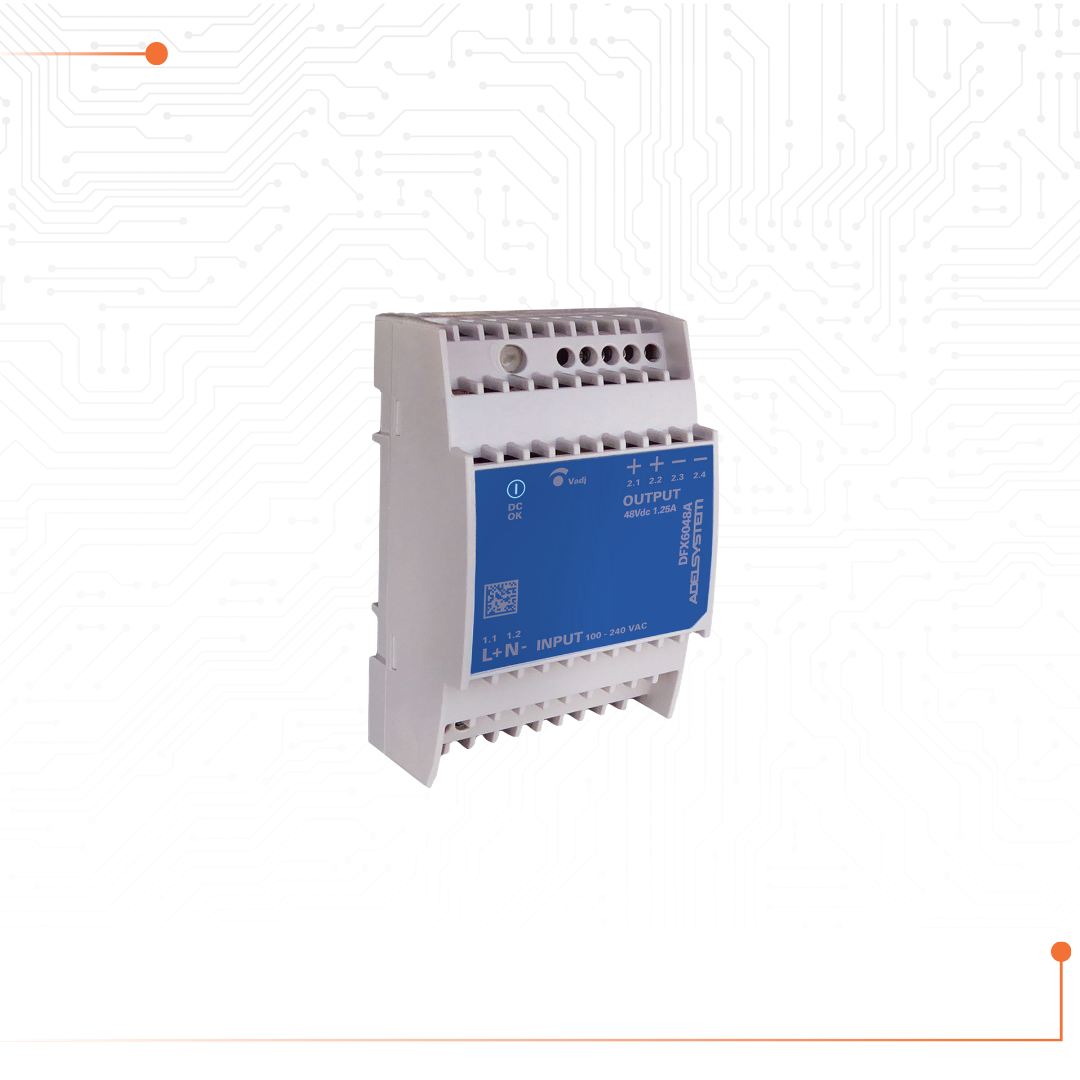

The Adel System DFX6048A is a compact DIN-rail power supply providing 48 V dc at 60 W with wide 90–305 Vac input. It features overload, over-voltage and short-circuit protection and is suited for industrial and automation applications
5 in stock (can be backordered)
The Adel System DFX6048A is a compact 48V 65W power supply delivering a regulated 48 Vdc output at up to 1.25 A, ideal for powering sensors, logic devices and control modules. It accepts a wide 90–305 Vac input range and operates over a broad temperature span from -25 °C to +70 °C, with built-in protection against overload, over-voltage and short-circuit conditions. The 48V 65W power supply also includes a peak load capability of up to 1.5 A for 3 mins. for Designed in a slim housing, the DFX6048A provides a reliable and space-efficient power solution for automation and industrial control systems
| Specification | Details |
|---|---|
| Power Rating | 65 W |
| Input Voltage | 90-305 Vac (95-370 Vdc) |
| Output Voltage | 48 Vdc |
| Output Current | 1.25 A |
| Operating Temperature | -25°C to +71°C |
| Dimensions | 90 x 18 x 55mm |
| Compliance Standards | EN62368-1, UL62368 |
| Country of Origin | Italy |
| Cooling Method | Free air convection |
| Warranty | 3 years |
| Ingress Protection | IP20 |
| Weight | 200 g |
| MTBF | 500k hours (model dependent) |
| Special Features | Output Voltage Adjustment, Peak Load Capability |
| Model Number | Input Range | Output Voltage | Power Rating |
|---|---|---|---|
| DFX6048A | 90-305 Vac | 48 Vdc | 65 W |
| Weight | 270 g |
|---|---|
| Dimensions | 114 × 90 × 54 mm |
| Output Voltage | 48 Vdc |
| Power | 65 W |
| Phase | Single-Phase |
| Filter by Power Rating | 60 W |
