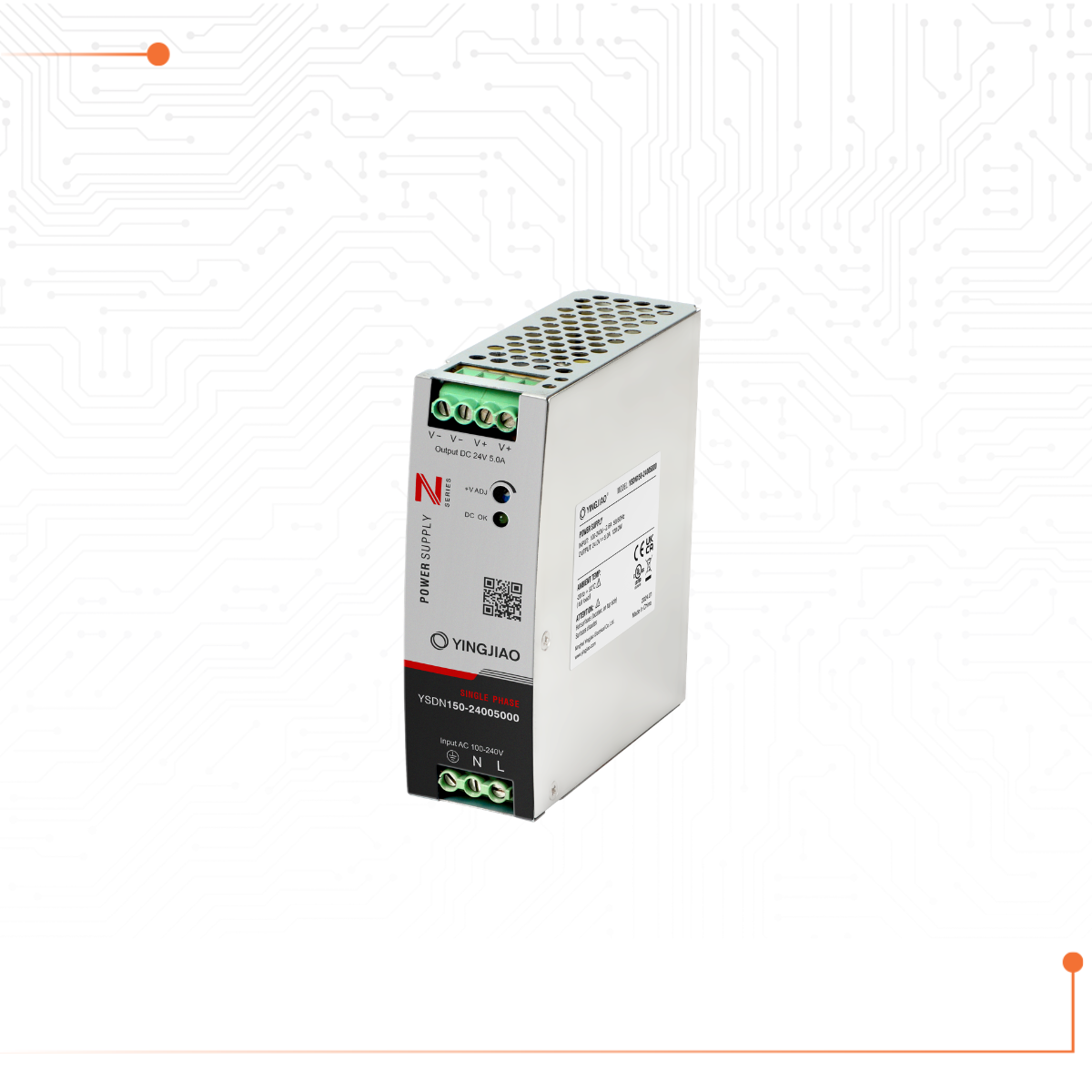

120W AC-DC - YSDN150-24005000 Din Rail Power Supplies

120W Power Supply – YSDN150-24005000

Original price was: £14.91.Current price is: £13.85.

AC-DC PSU. Power: 120W Input: 90-264 Vac Output: 12-24 Vdc

The YSDN150-24005000 from Yingjiao, 120 W ac-dc DIN-rail for industrial control applications.
Featuring universal input, protected outputs and a wider 120 W performance range.

Available on back-order

SKU: YSDN150-24005000 Category: Tag: Brand:

Description

Overview

The YSDN150 Series is a compact 120W power supply offering regulated 24 Vdc outputs at power levels of 120 W. Featuring a universal 90–264 Vac input, the range includes built-in short-circuit and overload protection for reliable operation. Designed for industrial control panels, automation and instrumentation applications, the units providing a space-saving and dependable power solution for industrial systems that require up to 120W AC-DC.

Key Features

  • Input Voltage: 90-264 Vac (120-370 Vdc)
  • Output Range: 24 Vdc
  • Power: 120 W
  • Efficiency: Up to 88%
  • Dimensions (H x W x D): 125 x 40 x 113 mm
  • Screw terminals
  • Certifications: UL & CE
  • Made in China
Download Product Datasheet
Get the full technical specifications and product details.

Download Datasheet

Technical Specification

Specification Details
Power Rating 120 W
Input Voltage 90–264 Vac (120–375 Vdc)
Output Voltage 24 Vdc
Output Current 5 A
Operating Temperature -20°C to +71°C
Dimensions 125 x 40 x 113 mm
Compliance Standards UL/EN62368-1
Country of Origin China
Cooling Method Free air convection
Warranty 3 years
Ingress Protection IP20
Weight 600 g
MTBF 450k hours (model dependent)
Special Features DC ON/Low indicators, Vout adjustment, Slim Housing

Available Models

Model Number Input Range Output Voltage Power Rating
YSDN150-24005000 90–264 Vac 24 Vdc 120 W


Additional information

Output Voltage

24 Vdc
Power

120 W
Phase

Single-Phase
Model

YSDN150-24005000
